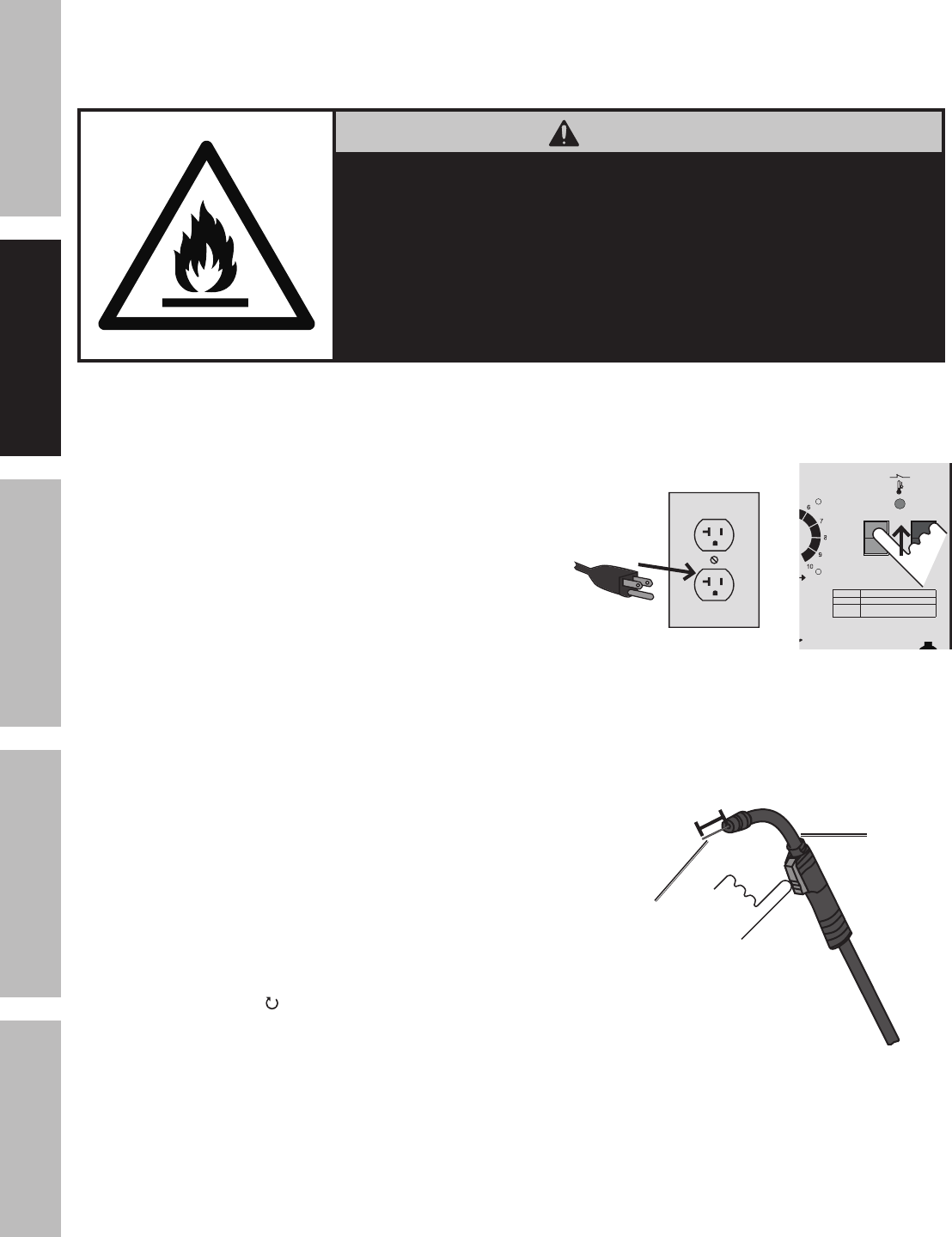

Page 10 For technical questions, please call 1-800-444-3353. Item 68887

WARNING

The following steps require applying power to the Welder

with the cover open.

To prevent serious injury from fire or electric shock:

1. Do not touch anything, especially not the Ground Clamp,

with the Gun or welding wire or an arc will be ignited.

2. Do not touch internal Welder components

while it is plugged in.

14. Do not touch the Gun’s Trigger.

Plug the Power Cord into its electrical

outlet and turn the Welder to ON.

15. Point the Gun away from all objects and press

the Trigger until the wire feeds out of the Gun

two inches.

The Wire Liner may come out with the welding

wire, this is normal, just push the Wire Liner

back into the Gun.

If the wire does not feed properly and the

Spool is stationary, turn the Welder to OFF,

unplug it, and slightly tighten the Feed

Tensioner clockwise before retrying.

ON MIN

OFF MAX

WIRE FEED SPEED

GUN

GROUND

120V~

60Hz

20A

90 AMP FLUX WIRE WELDER

ITEM 68887

Specications

Wire 0.030" – 0.035" Flux-Core

Capacity 18 Ga. – 3/16" Steel Plate

Weldable

Materials

Mild, Low Alloy Steel

(Not for Aluminum or Stainless Steel)

Welding

Wire

Gun

2″

SAFETY MAINTENANCEBASIC WELDING WELDING TIPSSETUP
